AUDIO

MOVE RACKS TO LOCATIONS

  • Mixer console to FOH

  • Stage rack near stage

  • Run power to both racks and turn on


STAGE RACK

Run stage snake

  • AES A on physical console

  • AES A on stage rack panel

Setup Antenna

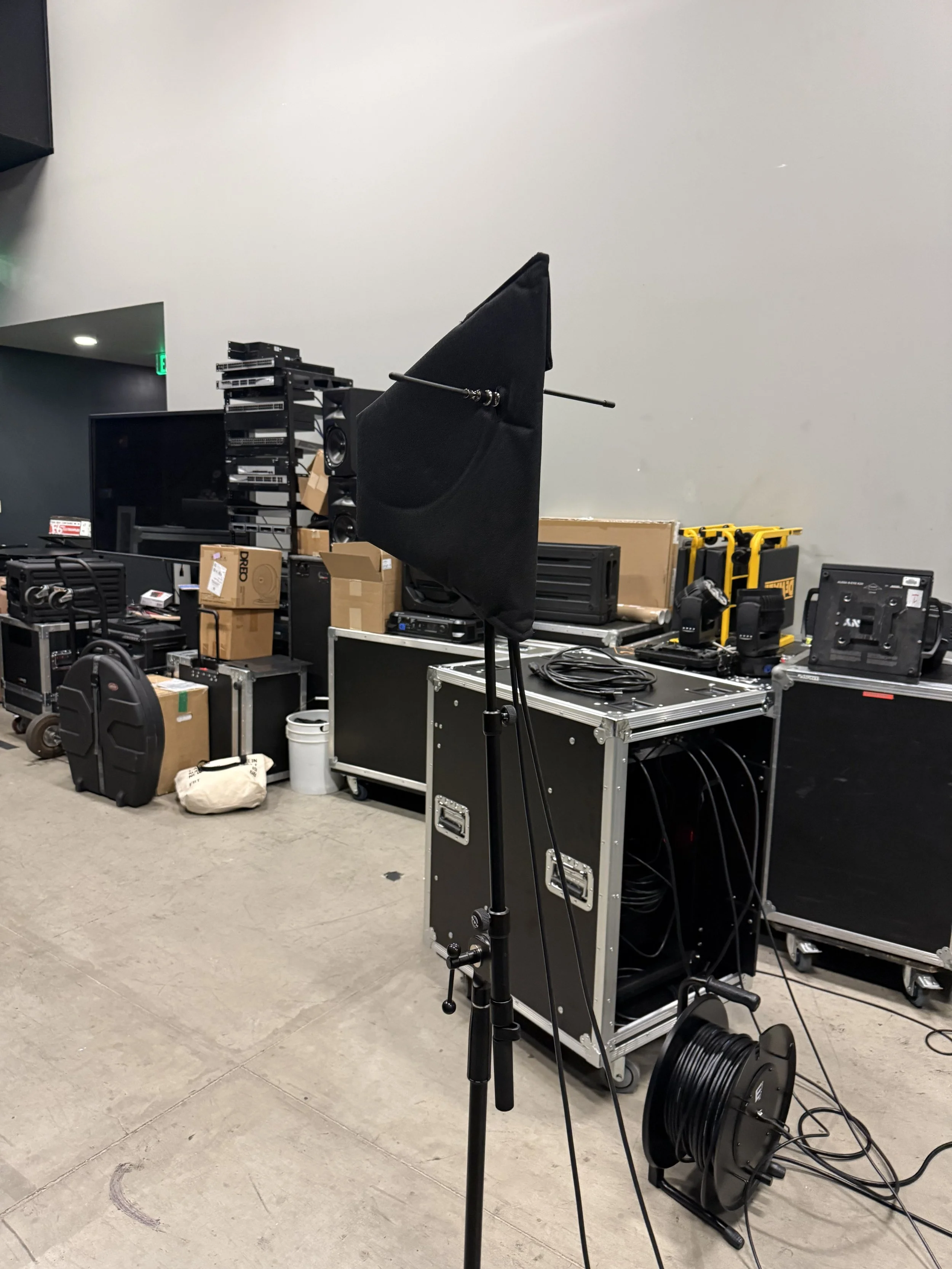

  • Setup antenna on the stand

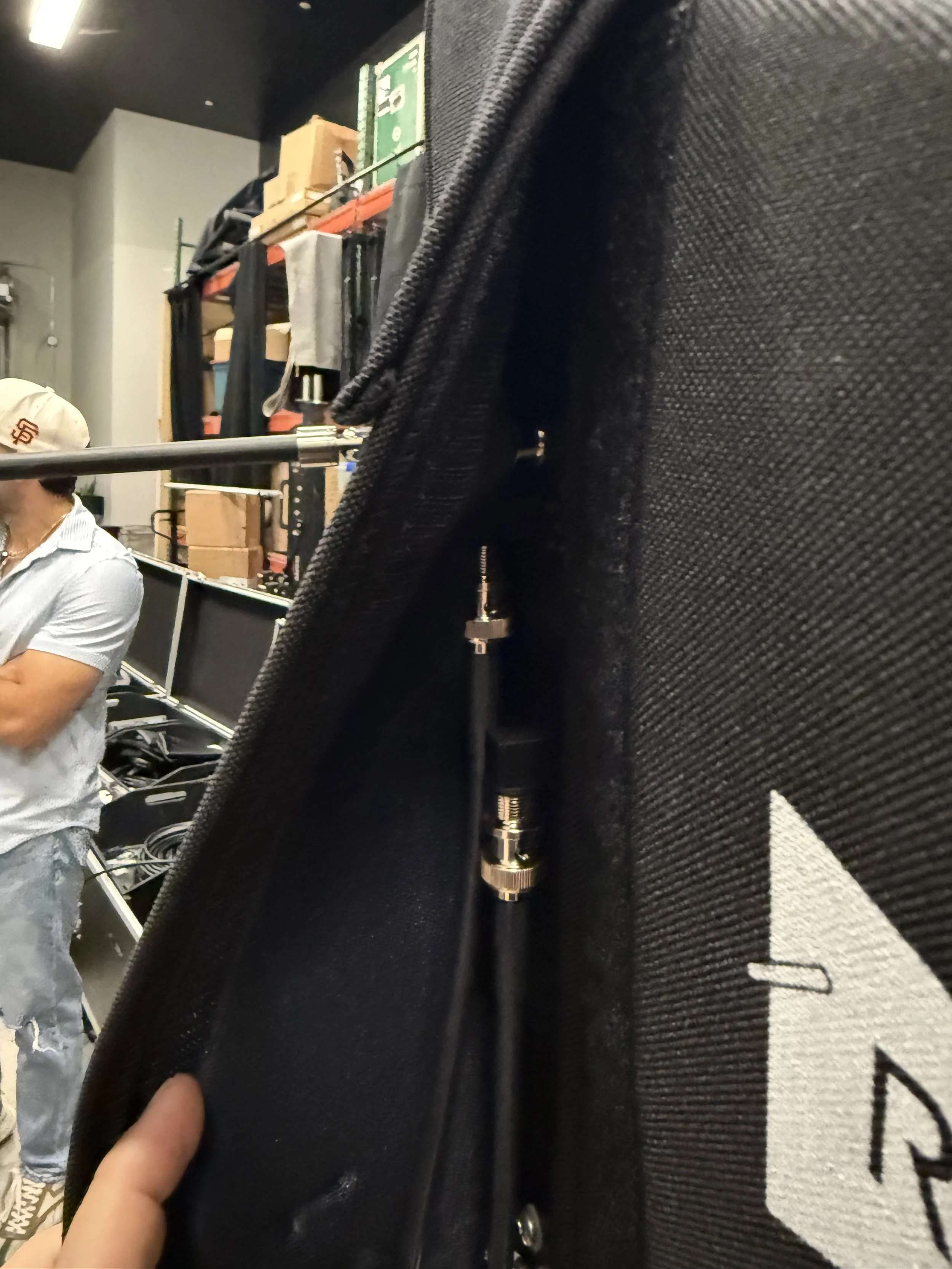

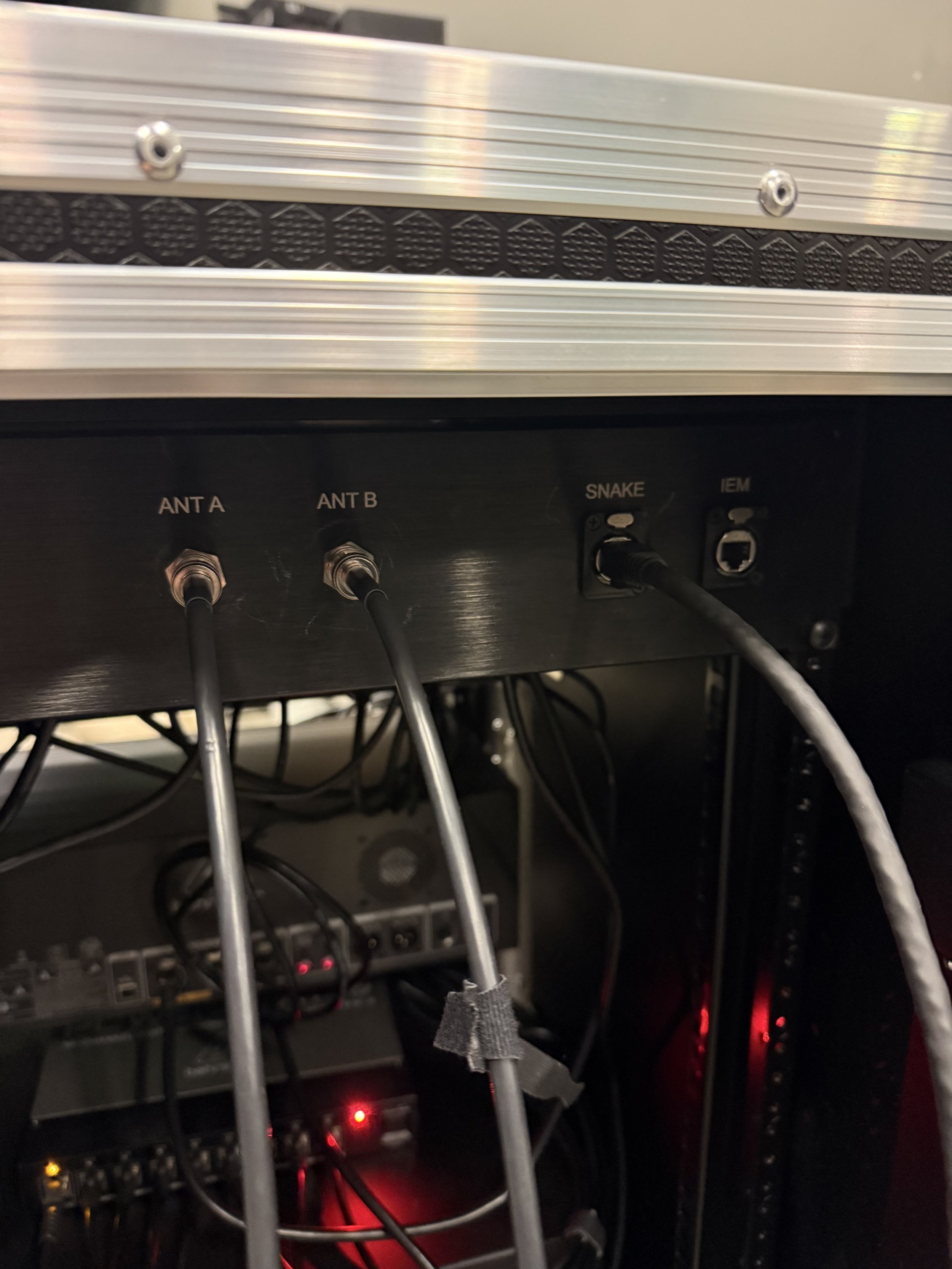

  • Run BNC Cables from antenna to stage rack

  • Either connector is fine

Run Main Speaker Lines

  • Output 1+2 on the stage rack to the speakers.

  • 1 is Left

  • 2 is Right

P16 Personal Mixers

  • Put together bases for P16’s

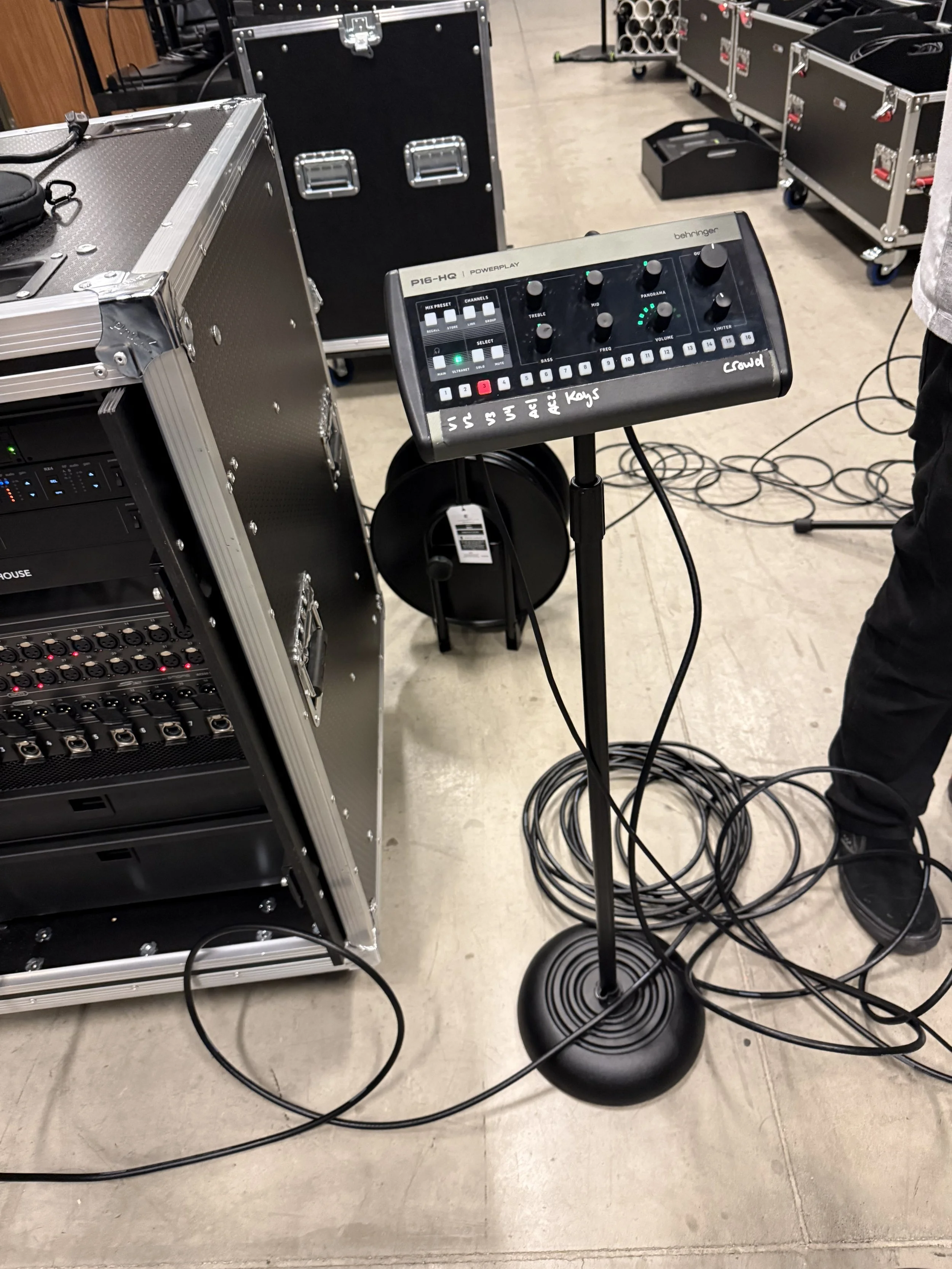

  • Attach P16 to stands

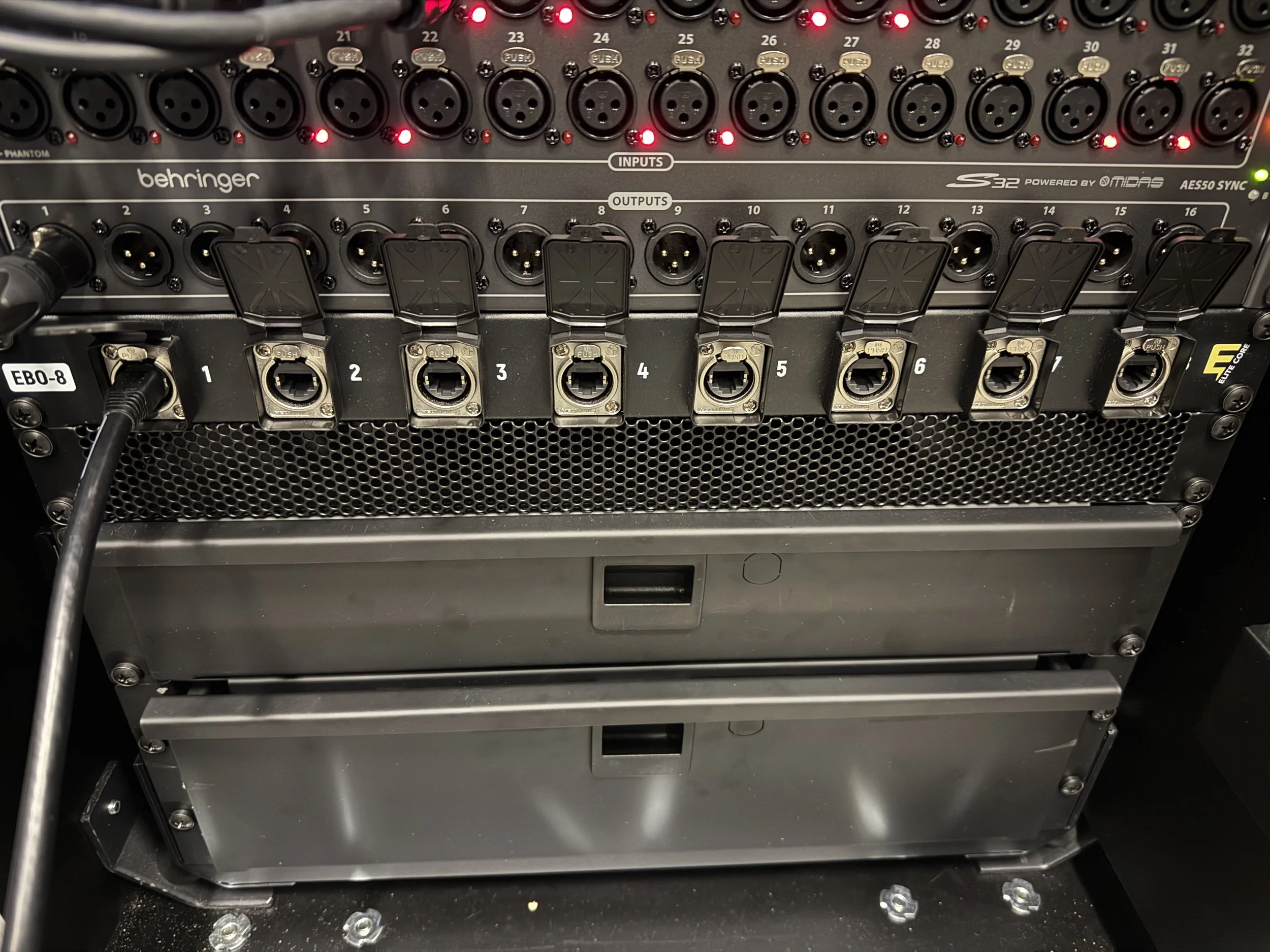

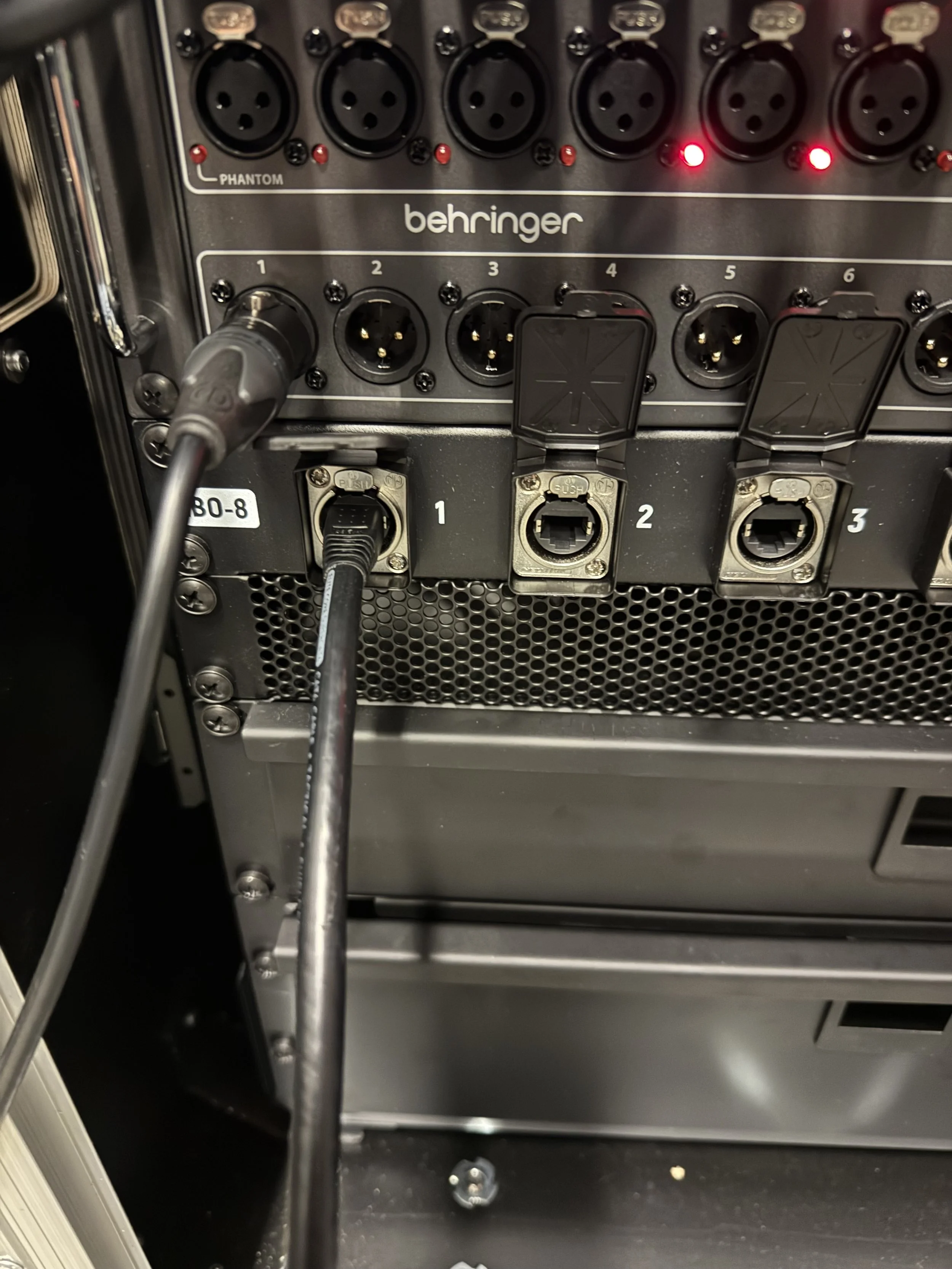

  • Connect ethernet cable from the labeled EBO-8 panel to the P16s

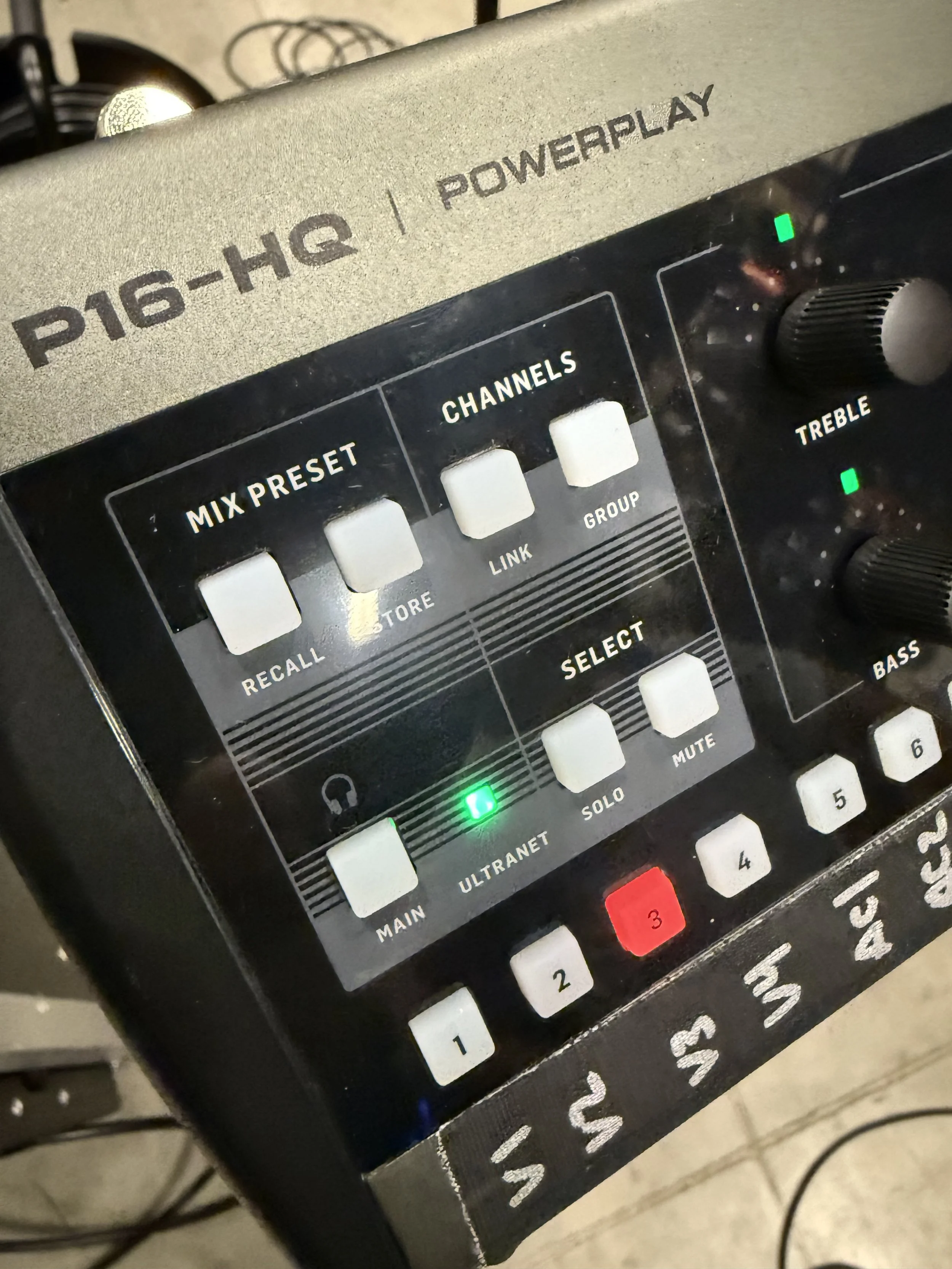

  • Green light “Ultra Net” must be lit to show connected
